ConvMamSPN + UGGP-ST

Overview

Highlights

01

Mamba-based Pose Network

ConvMamSPN combines a ConvNeXt visual backbone with a Mamba-based hierarchical decoder for accurate spacecraft keypoint heatmap prediction.

02

Directional Context Modeling

CrossScanMamba enhances long-range spatial dependency modeling by scanning feature maps across complementary directions.

03

Geometry-guided Recovery

Predicted 2D keypoints are combined with predefined 3D keypoints, and the 6D pose is recovered through PnP-based geometric solving.

04

Reliable Pseudo Labels

UGGP-ST filters pseudo labels using heatmap uncertainty and PnP reprojection consistency to reduce noisy target-domain supervision.

Paper Introduction

Abstract

Spacecraft 6D pose estimation is a fundamental task for non-cooperative space target perception, autonomous rendezvous, and on-orbit servicing. However, spacecraft images often suffer from weak textures, large scale variation, complex illumination, and significant synthetic-to-real domain gaps. To address these challenges, we propose ConvMamSPN, a Mamba-based keypoint pose estimation network, and UGGP-ST, an uncertainty-guided geometric pseudo-label self-training framework.

ConvMamSPN predicts spacecraft keypoint heatmaps using a ConvNeXt backbone and a Mamba-based hierarchical decoder. The final 6D pose is recovered using geometric PnP. UGGP-ST further improves target-domain robustness by selecting reliable pseudo labels through keypoint uncertainty estimation and PnP reprojection consistency, enabling effective teacher-student self-training on unlabeled real-domain images.

Method

ConvMamSPN and UGGP-ST

The framework integrates network-based keypoint localization, geometry-based pose recovery, and uncertainty-guided target-domain adaptation.

ConvMamSPN

ConvMamSPN is an encoder-decoder network for monocular spacecraft 6D pose estimation. It extracts hierarchical visual features with a ConvNeXt backbone and refines multi-scale decoder features with CrossScanMamba and MambaResBlock modules. The network outputs keypoint heatmaps, from which high-confidence 2D keypoints are selected for geometric PnP pose recovery.

ConvNeXt backbone for hierarchical visual representation.
Mamba-based decoder for global-local feature refinement.
Top-M keypoint selection for robust geometric solving.
EPnP / RANSAC PnP for interpretable 6D pose recovery.

UGGP-ST

UGGP-ST addresses the synthetic-to-real domain gap by generating and selecting reliable pseudo labels from unlabeled target-domain images. Instead of relying only on heatmap peak confidence, it jointly considers heatmap uncertainty and PnP reprojection consistency, reducing error accumulation during teacher-student self-training.

Peak confidence, entropy, and local variance uncertainty cues.
Geometric validation based on PnP consensus and reprojection error.
Teacher-student self-training on Lightbox and Sunlamp domains.
Improved robustness under illumination and background shifts.

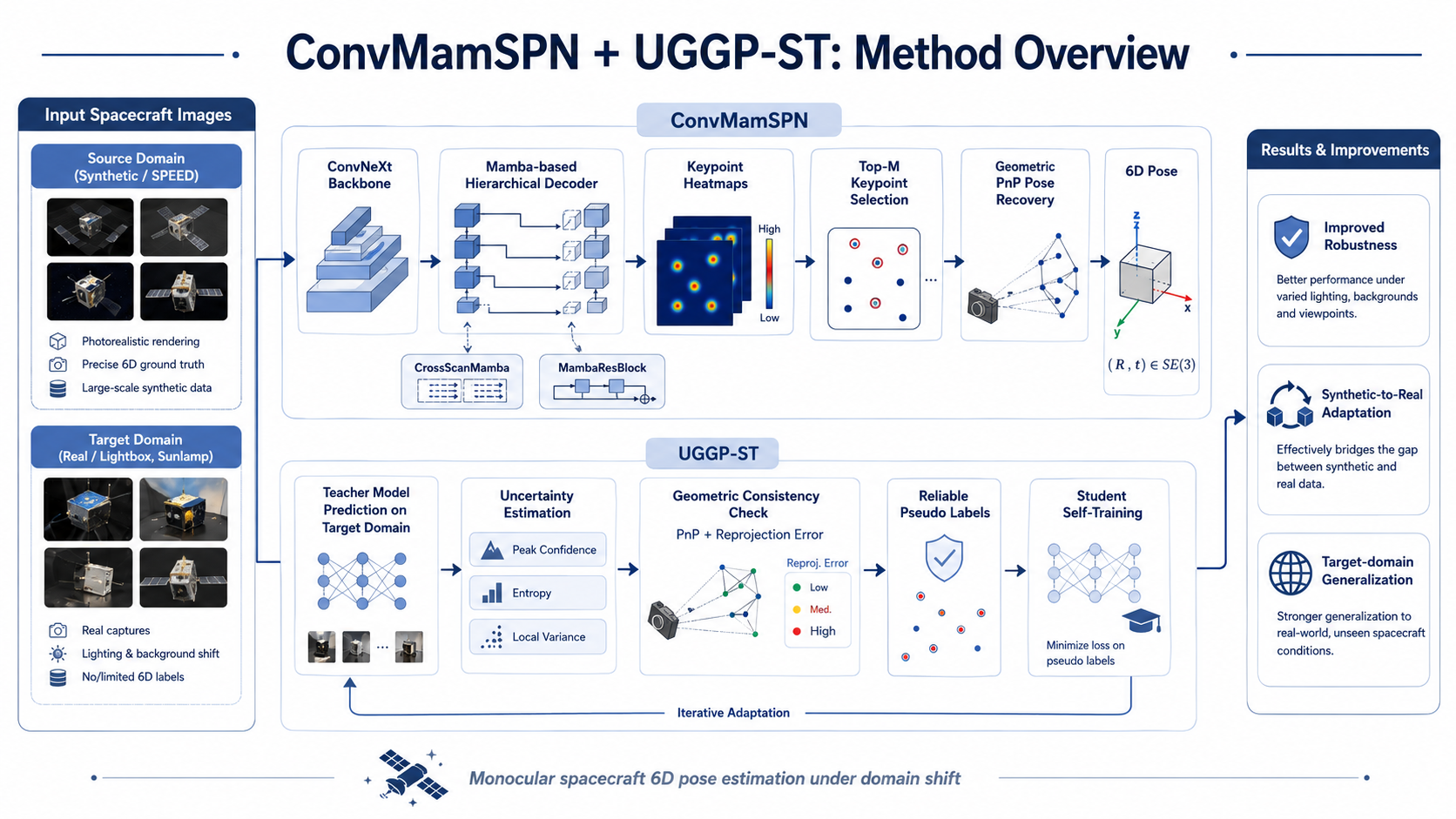

**ConvMamSPN architecture.** A ConvNeXt backbone and Mamba-based hierarchical decoder predict spacecraft keypoint heatmaps for PnP-based pose recovery.

UGGP-ST pseudo-label self-training pipeline — **UGGP-ST pipeline.** Uncertainty and geometric consistency are jointly used to select reliable pseudo labels for target-domain self-training.

Qualitative Visualization

Four-domain Result Carousel

Qualitative predictions are shown across SPEED, SPEED+ Synthetic, Lightbox, and Sunlamp domains. Each card independently rotates examples to illustrate robustness under synthetic-to-real appearance shifts.

Experiments

Results

Comparison with state-of-the-art methods on the SPEED+ dataset. Only A_score is shown for each domain for a compact project-page display.
Model	Params(M) ↓	FLOPs(G) ↓	Lightbox A_score ↓	Sunlamp A_score ↓	Synthetic A_score ↓
VPU	190.07	273.36	0.1014	0.0612	0.039
SPNv2	56.92	142.54	0.122	0.198	–
laval1302	–	–	0.1627	0.0545	0.04
KPN	–	–	0.810	1.320	–
SPTN	–	–	0.098	0.156	–
TSTF	–	–	0.095	0.197	–
PVSPE	73.09	104.12	0.101	0.178	–
PVSAR	30.60	–	0.076	0.112	–
SPNv3-S^†	22.70	–	0.064	0.088	–
SPNv3-M^†	39.60	–	0.056	0.082	–
SPNv3-B^†	86.30	–	0.047	0.074	–
ConvMamSPN + UGGP-ST Ours	13.97	23.87	0.0297	0.0465	0.0121

^† denotes results reported with an ensemble of heatmap predictions from models trained in three independent sessions, following the original paper. Best results are shown in bold, and second-best results are underlined.

Citation

BibTeX

@article{TODO,
  title   = {TODO},
  author  = {TODO},
  journal = {TODO},
  year    = {2026}
}
